Genuine Isuzu parts stocked across all six branches. Counterfeit filters and fuel components are the fastest route to an engine rebuild — this is the cheap insurance against that.
- Genuine Isuzu parts with manufacturer warranty
- Fast-moving service items held at every branch
- Inter-branch transfer for non-stock items
- Parts account facilities for fleet and workshop customers
Available at
Customer support line 0800-720-797 · Monday – Friday, 8:00 AM – 5:00 PM

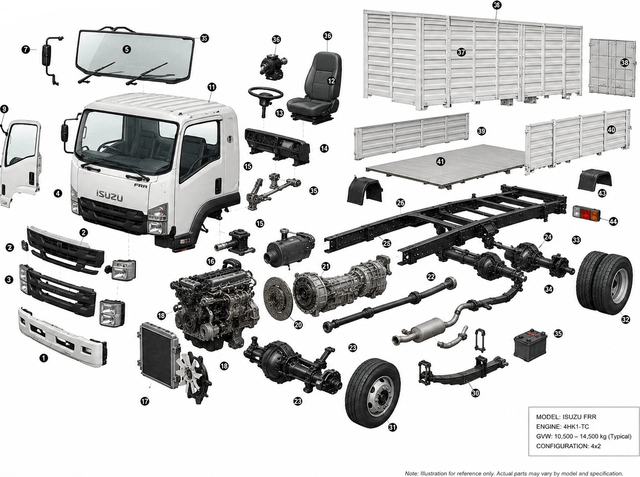

Parts diagram
An Isuzu FRR, taken apart
The 44 major assemblies of an FRR cab-chassis, numbered on the drawing and named below. Useful when you need to describe what has failed before you know what it is called.
Cab and body panels
Everything the road, the weather and other traffic get to first.
- Item 1: Front Bumper
- Item 2: Grille
- Item 3: Head Lamp Assembly
- Item 4: Front Panel
- Item 5: Windshield
- Item 6: Wiper Arm
- Item 7: Side Mirror (L)
- Item 8: Side Mirror (R)
- Item 9: Door (L)
- Item 10: Door (R)
- Item 11: Cab Assembly
- Item 44: Tail Lamp Assembly
Cab interior and tilt
The driver's side of the job — and the mechanism that gets you to the engine.
- Item 12: Seat
- Item 13: Steering Wheel
- Item 14: Instrument Panel
- Item 15: Cab Tilt Mechanism
- Item 36: Cabin Tilting Pump
Engine, cooling and fuel
The 4HK1-TC and everything that feeds, cools and breathes for it.
- Item 16: Engine 4HK1-TC
- Item 17: Radiator
- Item 18: Cooling Fan
- Item 19: Air Cleaner Assembly
- Item 27: Fuel Tank
- Item 28: Exhaust System
- Item 35: Battery
Driveline
Engine to wheels. Where a load either moves or does not.
- Item 20: Clutch Assembly
- Item 21: Transmission (MYY6S)
- Item 22: Propeller Shaft
- Item 23: Front Axle Assembly
- Item 24: Rear Axle Assembly
Chassis, suspension and brakes
The parts Kenyan road surfaces argue with hardest.
- Item 25: Frame Side Rail (L)
- Item 26: Frame Side Rail (R)
- Item 29: Front Suspension (Leaf Spring)
- Item 30: Rear Suspension (Leaf Spring)
- Item 31: Front Wheel & Tire
- Item 32: Rear Wheel & Tire (Dual)
- Item 33: Brake System (Front)
- Item 34: Brake System (Rear)
- Item 42: Mudguard (Front)
- Item 43: Mudguard (Rear)
Cargo body
Fitted to the chassis after it leaves the line — bodied to the work.
- Item 37: Cargo Body / Body Assembly
- Item 38: Rear Gate
- Item 39: Side Panel (L)
- Item 40: Side Panel (R)
- Item 41: Floor Panel
Not sure which part you need?
Describe the symptom and give us the chassis number. The parts counter identifies the part against your actual build — this drawing is an orientation aid, not a catalogue, and specifications differ between model years.
Best Value Parts
There is a third option, and most people have never heard of it
Between genuine Isuzu parts and the counterfeits sold at the roadside sits Isuzu's own Best Value Parts line — built to Isuzu's test standards, carrying Isuzu's warranty, at a lower price than genuine.

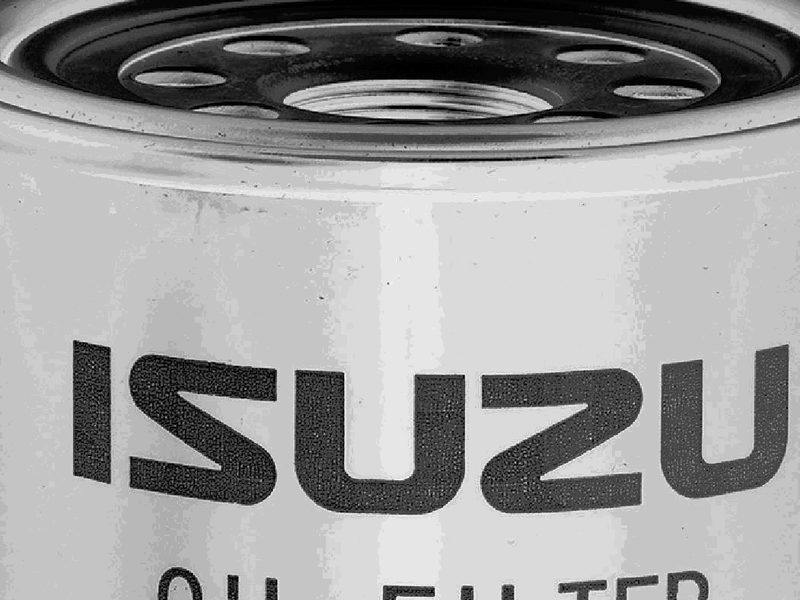

Filters

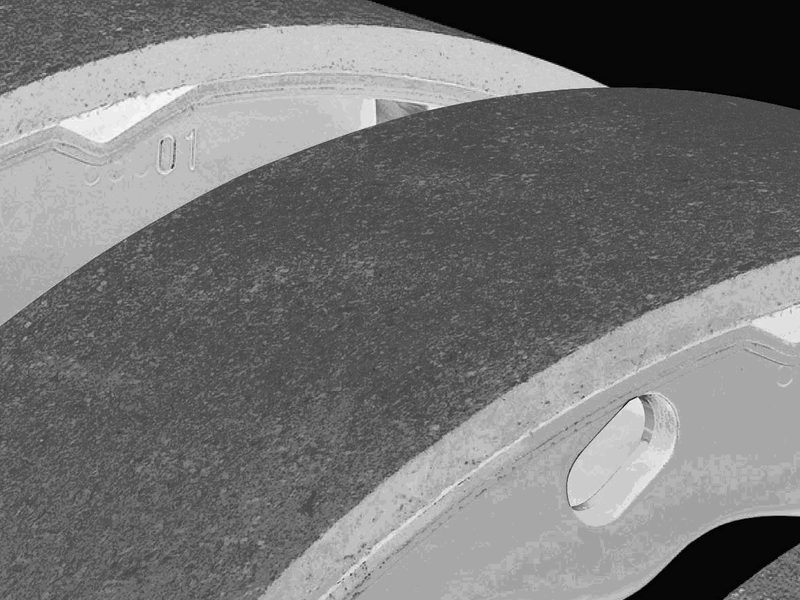

Brake

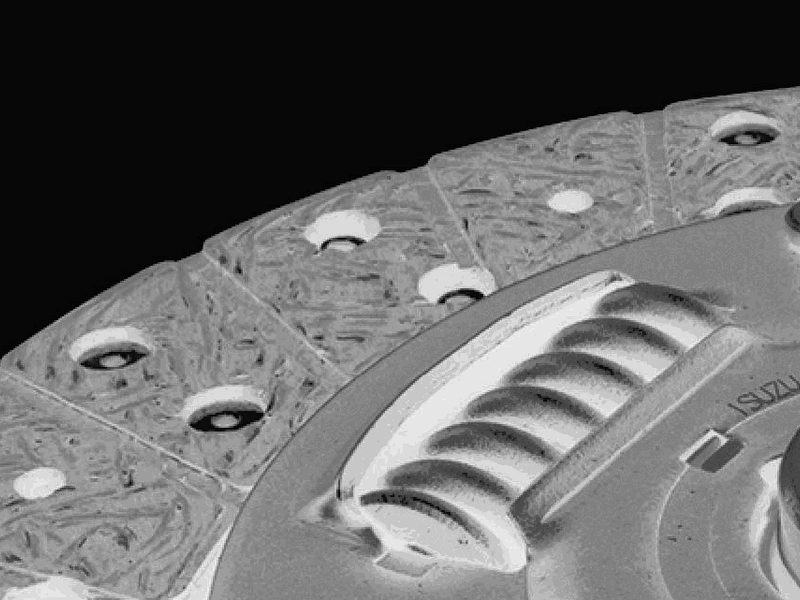

Clutch
Tested to the same criteria as genuine
Isuzu tests every BVP item against the standard it uses for genuine parts. Their own example: if a genuine oil filter is good for 5,000 km, the BVP filter is good for 5,000 km.
Made by Isuzu, not the aftermarket
BVP suppliers are certified through Isuzu's Production Part Approval Process. It is an Isuzu parts line — not a pattern part with a sticker on it.
The same warranty as genuine
Isuzu's warranty policy for BVP is the same as for genuine parts, and the part itself is covered by Isuzu. Fitting BVP does not put your vehicle warranty at risk.
What comes in Best Value Parts
Isuzu’s 2026 Best Value Parts catalogue is organised into six groups. Not every part has a BVP equivalent — ask the counter for the one you need and we will tell you straight whether it exists.
- Filters
- Oil, fuel, air and cabin — the parts a service consumes every time.
- Engine parts
- Internal and ancillary components across the Isuzu engine range.
- Clutch
- Discs, covers and release bearings.
- Chassis parts
- Suspension, steering and running-gear components.
- Brake
- Pads, shoes, discs and drums.
- Other parts
- Belts, seals, gaskets and the rest of the routine wear list.
A non-genuine part can end your vehicle warranty
Isuzu covers genuine and BVP parts. It does not cover non-genuine ones, and fitting them can void the warranty on the vehicle itself — so a cheap filter today becomes an engine rebuild you pay for in full. Isuzu’s own case files include a D-Max knocking within a year of sale, its warranty gone, the bill with the owner.
Ask which of your parts are available as BVP
Not every part has a BVP equivalent. Give the parts counter your chassis number and what you need, and they will tell you what is available in both, and what each costs.
Service menu
What an Isuzu service actually includes
Every interval, and every part and fluid replaced at it, taken from the Isuzu service schedule TMD works to. Published so you can plan a year of maintenance rather than find out at the counter.
mu-X
The seven-seat SUV. Longer intervals than the trucks, and the only range here with a pollen filter.
mu-X 3.0L(UCS40 4JJ3-TCX)service every 20,000 km
20,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Multi-purpose grease (PROP), EP2
40,000 km
Major service· 4 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transfer case oil 15W-40, CI-4
- Rear differential oil, 80W-90, GL-5
- Front differential oil 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
80,000 km
+transmission Oil service· 5 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transmission oil automatic, Isuzu ATF wsi/mobil ATF 3309
- Transfer case oil 15W-40, CI-4
- Rear differential oil, 80W-90, GL-5
- Front differential oil 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
mu-X 1.9L(UCS87 RZ4E-TC)service every 20,000 km
20,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Multi-purpose grease (PROP), EP2
40,000 km
Major service· 4 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transfer case oil 15W-40 CI-4
- Rear differential oil 80W-90, GL-5
- Front differential oil 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
80,000 km
+transmission Oil service· 5 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transmission oil automatic, Isuzu ATF wsi/mobil ATF 3309
- Transfer case oil 15W-40 CI-4
- Rear differential oil 80W-90, GL-5
- Front differential oil 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
D-Max
Pickup. Serviced on the same cycle whether it works a site or a school run.
RG06 3.0L(TFS40 4JJ3-TCX)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Multi-purpose grease (PROP), EP2
20,000 km
Medium service· 2.5 hrs
- Oil filter
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Multi-purpose grease (PROP), EP2
30,000 km
Major service· 4 hrs
- Oil filter
- Fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transfer case oil 15W-40 CI-4
- Rear differential oil, 80W-90, GL-5
- Front differential oil, 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
90,000 km
+transmission service· 5 hrs
- Oil filter
- Fuel filter
- Pollen filter
- Air cleaner
- Engine oil 5W-40, CI/CJ-4 (fully synthetic)
- Transmission oil automatic, Isuzu ATF wsi/mobil ATF 3309
- Transfer case oil 15W-40 CI-4
- Rear differential oil, 80W-90, GL-5
- Front differential oil, 75W-90, GL-5
- Power steering fluid, Dexron VI
- Brake fluid, DOT 4
- Multi-purpose grease (PROP), EP2
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
N-Series trucks
Light trucks, 3.5 to 8.5 tonnes GVW. The workhorses of Kenyan distribution.
NPS81 (4x4)service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
30,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
45,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-5T)
- Transfer case oil 15W-40
- Rear differential oil 85W-90 LS GL-5
- Front differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
60,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
75,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
90,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-5T)
- Transfer case oil 15W-40
- Rear differential oil 85W-90 LS GL-5
- Front differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
NQR81 (Without HBB)service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
30,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
45,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-6T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
60,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
75,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
90,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-6T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
NQR81 (With HBB)service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
30,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
45,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-6T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Hydraulic brake booster fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
60,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
75,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
90,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MYY-6T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Hydraulic brake booster fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
NMR85service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- LUBIX grease
30,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- LUBIX grease
45,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- Transmission oil 15W-40, CI-4 (MYY-5T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
60,000 km
Minor service· 2.5 hrs
- Oil filter
- Main (element)
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- LUBIX grease
75,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- LUBIX grease
90,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4JJ1-TC)
- Transmission oil 15W-40, CI-4 (MYY-5T)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
NLR77service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
20,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
30,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
40,000 km
Major service· 5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Element
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- Transmission oil 15W-40, CI-4 (MSB-5S)
- Rear differential oil 80W-140 GL-5
- Clutch fluid DOT 4
- LUBIX grease
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Wheel hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Oil filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
60,000 km
Medium service· 2.5 hrs
- Oil filter
- Main (element)
- Pre-fuel filter
- Engine oil 15W-40, CI-4 (4HL1-TCS)
- LUBIX grease
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
F-Series trucks and buses
Medium and heavy trucks, and the bus chassis built on the same running gear.
FRR90service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Oil filter
- Fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Medium service· 2.5 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
45,000 km
Major service· 5 hrs
- Oil filter
- Fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MZZ6W) oil 80W-90 GL5
- Rear differential oil 85W-140 GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Hub bearing grease (LUBIX XHP 103)
60,000 km
Medium service· 2.5 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
75,000 km
Minor service· 2.5 hrs
- Oil filter
- Fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
90,000 km
Comprehensive service· 5 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MZZ6W) oil 80W-90 GL5
- Rear differential oil 85W-140 GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FTR90 (NON LSD TYPE)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MLD6A) oil 80W-90 GL5
- Rear differential oil (non LSD) 85W-140 GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MLD6A) oil 80W-90 GL5
- Rear differential oil (non LSD) 85W-140 GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FTR90 (LSD TYPE)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MZZ6W) oil 80W-90 GL5
- Rear differential oil (LSD) 85W-90LS GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MZZ6W) oil 80W-90 GL5
- Rear differential oil (LSD) 85W-90LS GL 5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FVZ34N(TIPPER) & FVZ34T(LONG WHEEL BASE)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil 15W-40 CI-4
- Transmission oil (ZF110) 80W-90 GL5
- Rear differential oil 85W-140 GL-5 (forward)
- Rear differential oil 85W-140 GL-5 (rearward)
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil 15W-40 CI-4
- Transmission oil (ZF110) 80W-90 GL5
- Rear differential oil 85W-140 GL-5 (forward)
- Rear differential oil 85W-140 GL-5 (rearward)
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FVR34P (Truck)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (ZF9S1110 ) 80W-90 GL5
- Rear differential oil (R130) 85W-140 GL-5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (ZF9S1110 ) 80W-90 GL5
- Rear differential oil (R130) 85W-140 GL-5
- Clutch fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FTS34 TRUCK - Single Rear Tyre (Severe Usage)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, single tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, single tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, single tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, single tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FTS34 TRUCK - Dual Rear Tyre (Kenya Spec)- Severe Usageservice every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FTS34 TRUCK - Dual Rear Tyre (South Africa Spec- Uganda) Full Air Brakes- Severe Usageservice every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- T-case oil (TF56) 80W-90 GL5
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (MZW6P) 80W-90 GL5
- T-case oil (TF56) 80W-90 GL5
- Front differential oil (14.4"-FT047, dual tyre wheel)85W-140 GL-5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FVR90 (NON LSD TYPE)service every 10,000 km
10,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
20,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
40,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MLD6A) oil 80W-90 GL5
- Rear differential oil (R092) 85W-140 GL-5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
50,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
70,000 km
Minor service· 2.5 hrs
- Main oil filter
- Engine oil 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
80,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil 15W-40 CI-4
- Transmission (MLD6A) oil 80W-90 GL5
- Rear differential oil (R092) 85W-140 GL-5
- Clutch fluid DOT 4
- Chassis grease (LUBIX XHP 102)
- Power steering fluid ATF MD3
- Brake fluid DOT 4
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FSRN 90 BUSservice every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (4HK1) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Engine oil (4HK1) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
45,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Air cleaner (outer)
- Engine oil (4HK1) 15W-40 CI-4
- Transmission oil (MLD6A) 80W-90 GL5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Engine oil (4HK1) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
75,000 km
Minor service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (4HK1) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
90,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Engine oil (4HK1) 15W-40 CI-4
- Transmission oil (MLD6A) 80W-90 GL5
- Rear differential oil (15.5 R092" 85W-140 GL-5)
- Clutch fluid DOT 4
- Brake fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
FVR34S (Bus)service every 15,000 km
15,000 km
Minor service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
30,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
45,000 km
Major service· 5 hrs
- Main oil filter
- Main fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (ZF9S1110 ) 80W-90 GL5
- Rear differential oil (15.5 R130" 85W-140 GL-5)
- Clutch fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
60,000 km
Medium service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
75,000 km
Minor service· 2.5 hrs
- Main oil filter
- Main fuel filter
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Chassis grease (LUBIX XHP 102)
90,000 km
Comprehensive service· 5 hrs
- Main oil filter
- Main fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil (6HK1 TCN) 15W-40 CI-4
- Transmission oil (ZF9S1110 ) 80W-90 GL5
- Rear differential oil (15.5 R130" 85W-140 GL-5)
- Clutch fluid DOT 4
- Power steering fluid ATF MD3
- Chassis grease (LUBIX XHP 102)
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
GXZ prime mover
The heavy tractor unit. The longest interval and the biggest single service on the list.
GXZ60Nservice every 20,000 km
20,000 km
Minor service· 3 hrs
- Oil filter
- Fuel filter
- Engine oil 5W-40 CI-4
- Grease [kgs] LUBIX XHP 102
40,000 km
Major service· 6 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Engine oil 5W-40 CI-4
- Transmission oil 80W-90 GL5
- Inter differential oil 85W-140 GL 5
- Rear differential oil 85W-140 GL 5
- Clutch fluid DOT 4
- Grease [kgs] LUBIX XHP 102
- Hub bearing grease (LUBIX XHP 103)
60,000 km
Minor service· 3 hrs
- Oil filter
- Fuel filter
- Engine oil 5W-40 CI-4
- Grease [kgs] LUBIX XHP 102
80,000 km
Comprehensive service· 6 hrs
- Oil filter
- Fuel filter
- Pre-fuel filter
- Air cleaner (outer)
- Air cleaner (inner)
- Engine oil 5W-40 CI-4
- Transmission oil 80W-90 GL5
- Inter differential oil 85W-140 GL 5
- Rear differential oil 85W-140 GL 5
- Clutch fluid DOT 4
- Grease [kgs] LUBIX XHP 102
- Hub bearing grease (LUBIX XHP 103)
Intervals assume normal operating conditions. Quarry, murram and heavy-haul work shortens several of them — engine oil and the air cleaner most of all. Ask the service desk to set the schedule against how the vehicle is actually used.
20 current models are listed. TMD services older Isuzu vehicles as well — including the TFS, TFR, NQR66, FRR33 and FVR23 ranges — whose schedules are not published here. Call the service desk for those.
